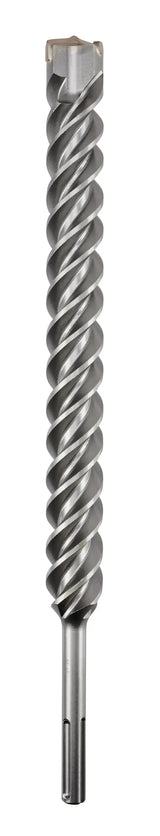

SDS Max XLR drill bit with 4 cutting edges 40 x 570 x 450 mm DT60845-QZ DeWalt

What it is

SDS Max XLR drill bit with 4 cutting edges 40 x 570 x 450 mm DT60845-QZ DeWalt. Key specifications: type 4-cutter hammer bit, connection SDS Max, diameter (mm) 40.

An SDS-Max bit is a carbide-tipped bit for rotary hammers with an SDS-Max chuck, for large-diameter, deep holes in concrete and masonry.

What it is for

Used for drilling reinforced concrete, in hammer or rotary hammer mode and for drilling solid and hollow masonry, clay brick and blocks.

How to use it

Clean and lightly grease the shank, insert it into the chuck until it locks and select hammer drilling. Drill with the hammer held in line with the hole, letting the machine's weight do the work without pushing, and withdraw the bit frequently to clear the dust. If you hit a reinforcing bar, stop and move the hole; do not cool a hot bit in water.

Where it is used

• Residential construction
• Building services
• Renovation

Technical data

• Type: 4-cutter hammer bit
• Connection: SDS Max
• Diameter (mm): 40
• Length (mm): 570
• Material: Carbide head
• Use: reinforced concrete, masonry, natural and artificial stone
• Pack (pcs): 1

Who it is for

Designed for demolition operatives and bricklayers.

Related products

• SDS Max XLR drill bit with 4 cutting edges 40 x 920 x 800 mm DT60846-QZ DeWalt
• SDS Max XLR 4-cutter bit 40 x 380 x 250 mm DT60844-QZ DeWalt
• Combination hammer SDS-Max 52mm XR FlexVolt 54V with 2 batteries 9Ah DeWalt DCH775X2-QW — from the category Combination Hammers
• Rotary hammer 18V - bare unit DeWalt DCH273NT-XJ — from the category Rotary Hammers
• Vinyl ester adhesive capsule SC-PRO M12 DeWalt DFC1510100 — from the category Chemical Anchors
• Browse the whole category: SDS Max Drill Bits

Before you order

In your request, please state the length, the diameter, the connection type and the quantities required, so we can give you the right quotation first time.

For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
