Anchor Analog PRO Rail, Irudek
Key features
- StandardEN 795 B | TS 16415
- Load capacity (kg)140
- Users1 (2 if another trolley is added
- Reach (m)3,1
- Rail length (m)6
- Overall height (m)9,6
What it is

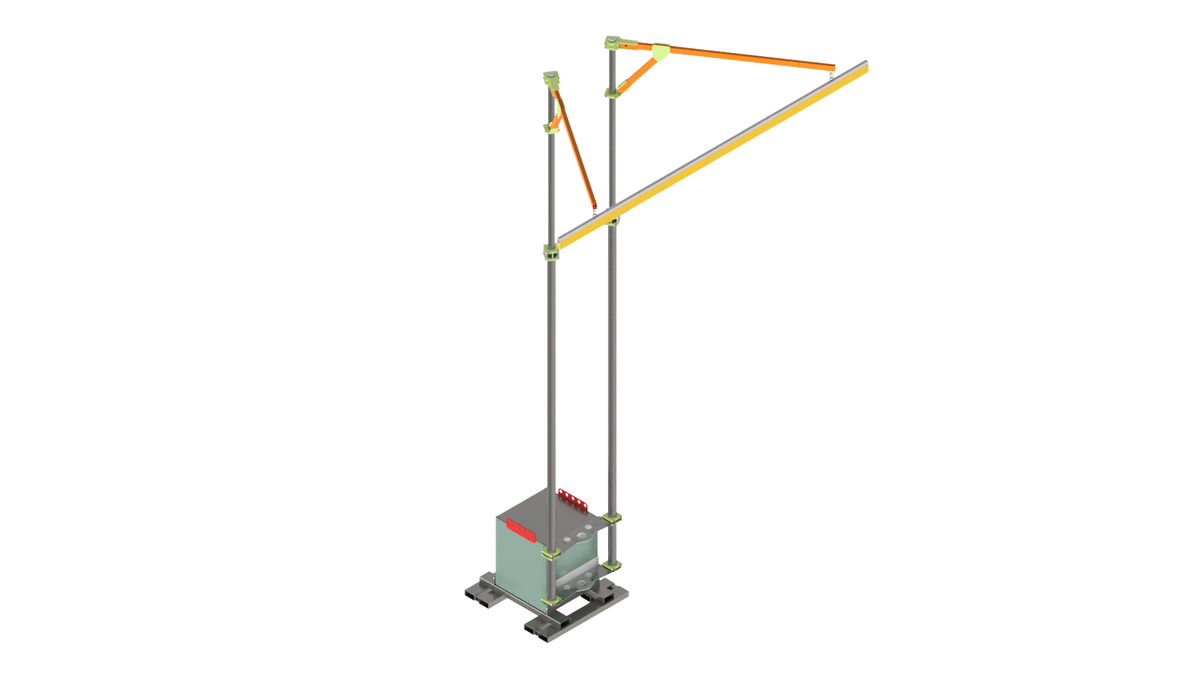

Anchor ANALOG PRO RAIL (code analog-pro-rail-2-utenti) is an Irudek anchor device for fall protection. It is intended for professional use for working at height safely, in accordance with the manufacturer's instructions.
A fall protection anchor is the fixed point, permanent or mobile, to which the worker's fall arrest or rope access system is connected.
What it is for
Used as an anchor point in fall protection systems, as personal protective equipment in hazardous work and for work at height, where access and restraint must be ensured for the whole job.
How to use it
Choose the type according to the substrate (concrete, rock, steel, beam, vehicle) and install it following the manufacturer's instructions, using the specified fixings. Check its condition before use and connect with a connector, preferably above the worker's head. Take into account the fall clearance below the work position; an anchor that has arrested a fall must be taken out of service.
Where it is used
- Industrial construction
- Residential construction
- Workplace safety and PPE
Technical data
- Standard: EN 795 B | TS 16415
- Load capacity (kg): 140
- Users: 1 (2 if another trolley is added
- Reach (m): 3,1
- Rail length (m): 6
- Overall height (m): 9,6
- Maximum height at anchor point (m): 9,1
- Recommended maximum working height (m): 7,1
- Weight with cement (kg): 3954
- Certifications: EN 795
Who it is for
Designed for building maintenance operatives, industrial maintenance technicians and health and safety officers.
Standards and compliance
Device compliant with EN 795 B | TS 16415. The manufacturer's data sheet and declaration of conformity are available.
Related products
- Anchor ATEA, Irudek
- Anchor ANALOG PRO, Irudek
- Fall protection kit, Ganboa, Irudek — from the category Fall Arrest Harnesses
- Connector SILVERLIGHT 988 Irudek — from the category Safety Karabiners
- Arima Flex Y 155SHWA connection system Irudek — from the category Lanyards and Energy Absorbers
- Browse the whole category: Anchors
Before you order
In your request, please state the length and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 10
| Standard | EN 795 B | TS 16415 |
|---|---|
| Load capacity (kg) | 140 |
| Users | 1 (2 if another trolley is added |
| Reach (m) | 3,1 |
| Rail length (m) | 6 |
| Overall height (m) | 9,6 |
| Maximum height at anchor point (m) | 9,1 |
| Recommended maximum working height (m) | 7,1 |
| Weight with cement (kg) | 3954 |
| Certifications | EN 795 |
