All Dantherm Group products

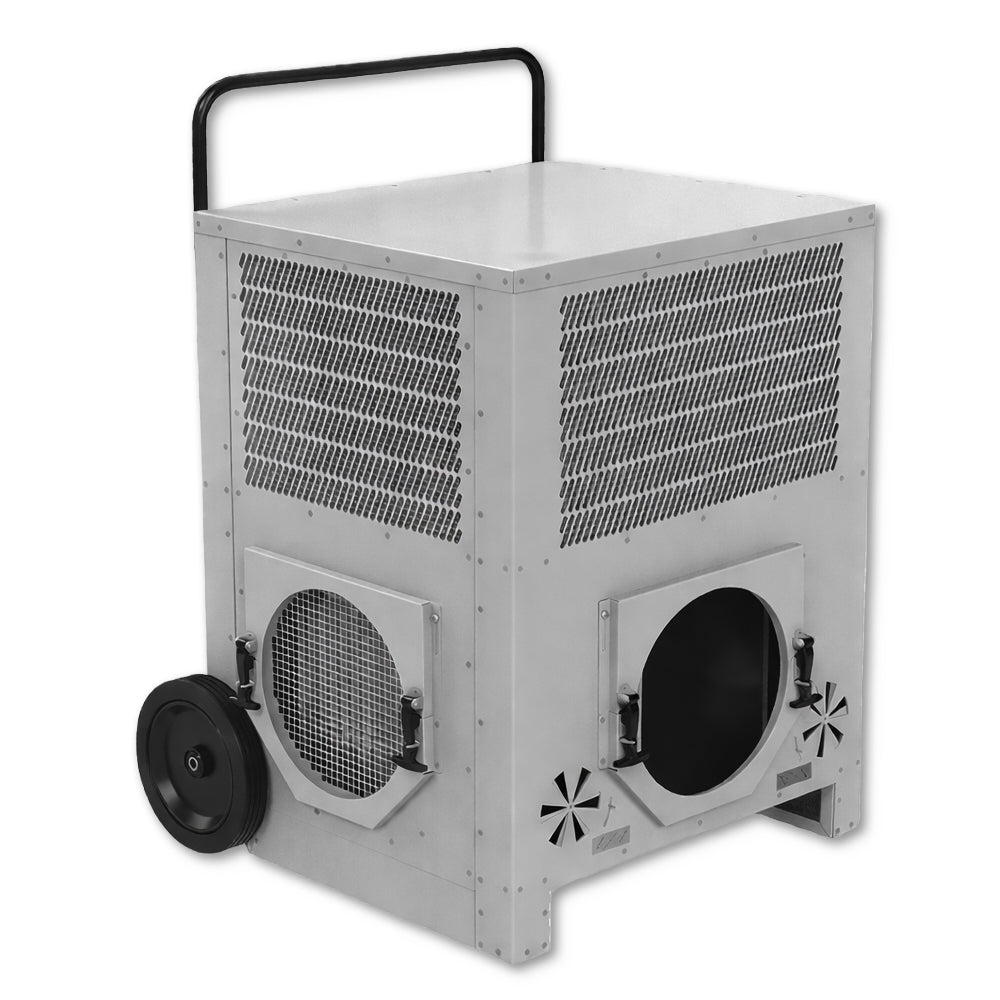

Dantherm air cooling system Dantherm Group AC-R6000
Key features
- Operating temperature range, cooling+25 – +51 ºC
- Air flow rate (m³/h)1.400
- Cooling capacity, 51/41 °C, 30% RH (kW)6,1
- Cooling capacity, 35/27 °C, 38% RH (kW)3,7
- Max current, cooling/heating operation (A)14,9
- Locked rotor current, LRA (A)35,5
What it is
Dantherm air cooling system Dantherm Group AC-R6000. Key specifications: operating temperature range, cooling +25 – +51 ºC, air flow rate (m³/h) 1.400, cooling capacity, 51/41 °C, 30% RH (kW) 6,1.
An industrial cooler is a portable air conditioner, evaporative cooler or fan that lowers the temperature or moves air in warehouses, construction sites and plant rooms.
What it is for
Used for air conditioning industrial premises, for dehumidifying indoor spaces and for ventilating workplaces.
How to use it
Place portable air conditioners near an opening, with the hot air hose venting outside and the condensate drain connected or emptied; fill evaporative coolers with clean water. Set fans down securely, with the guard intact, directing the airflow towards workstations. Clean filters and grilles regularly and connect the units to protected sockets.
Where it is used
- Events and exhibition fit-out
- Mechanical engineering industry
- Logistics and warehousing
Technical data
- Operating temperature range, cooling: +25 – +51 ºC
- Air flow rate (m³/h): 1.400
- Cooling capacity, 51/41 °C, 30% RH (kW): 6,1
- Cooling capacity, 35/27 °C, 38% RH (kW): 3,7
- Max current, cooling/heating operation (A): 14,9
- Locked rotor current, LRA (A): 35,5
- GWP global warming potential: 148
- Ingress protection for electrical parts: IPX5
- Sound emission level at 1 m (dB(A)): 60
- Fresh air intake: 0 to 200 m³/h
- Fresh air intake/recirculation filter: Coarse type
- Handling: On wheels or by forklift
- Power cable with plug: 10m with CEE 3P 6H-IP54,230V,16A
- Flexible hose connection: Ø315 Ømm
Who it is for
Designed for industrial maintenance technicians and HVAC technicians.
Technical specifications
| Feature | Value |
|---|---|
| Operating temperature range, cooling | ºC |
| Operating temperature range, heating | ºC |
| Air flow | m³/h |
| Cooling capacity @ 51/41°C 30% RH | kW |
| Cooling capacity @ 35/27°C 38% RH | kW |
| Heating capacity | kW |
| Power supply | V/Hz |
| Max. operating current, cooling/heating | A |
| Refrigerant | Type/kg |
| Maximum system pressure | bar |
| GWP (global warming potential) | - |
| Power cable with plug | - |
| Product dimensions (H x W x D) | mm |
| Weight | kg |
Related products
- Trotec PAC-W 2650 SH air cooling system Dantherm Group
- Dantherm air cooling system Dantherm Group AC-R18000
- Dehumidifier Aerial AD 40 Dantherm Group — from the category Dehumidifiers and Heat Pumps
- Extension lead – 16A / 5 m for Master heaters and dehumidifiers, Dantherm Group — from the category Site Electrical Equipment: Plugs, Sockets, Cables and Extension Leads
- Air purifier Heylo DCS-PF 1000 — from the category Ventilation Systems, Air Grilles and Vents
- Browse the whole category: Industrial Space Coolers
Before you order
In your request, please state the rated load or flow rate and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 16
| Operating temperature range, cooling | +25 – +51 ºC |
|---|---|
| Air flow rate (m³/h) | 1.400 |
| Cooling capacity, 51/41 °C, 30% RH (kW) | 6,1 |
| Cooling capacity, 35/27 °C, 38% RH (kW) | 3,7 |
| Max current, cooling/heating operation (A) | 14,9 |
| Locked-rotor current, LRA (A) | 35,5 |
| GWP global warming potential | 148 |
| Ingress protection for electrical parts | IPX5 |
| Sound emission level at 1 m (dB(A)) | 60 |
| Fresh air intake | 0 to 200 m³/h |
| Fresh air intake/recirculation filter | Coarse type |
| Handling | On wheels or by forklift |
| Power cable with plug | 10m with CEE 3P 6H-IP54,230V,16A |
| Flexible hose connection | Ø315 Ømm |
| Room thermostat | Optional |
| Safety | CE/UKCA |
