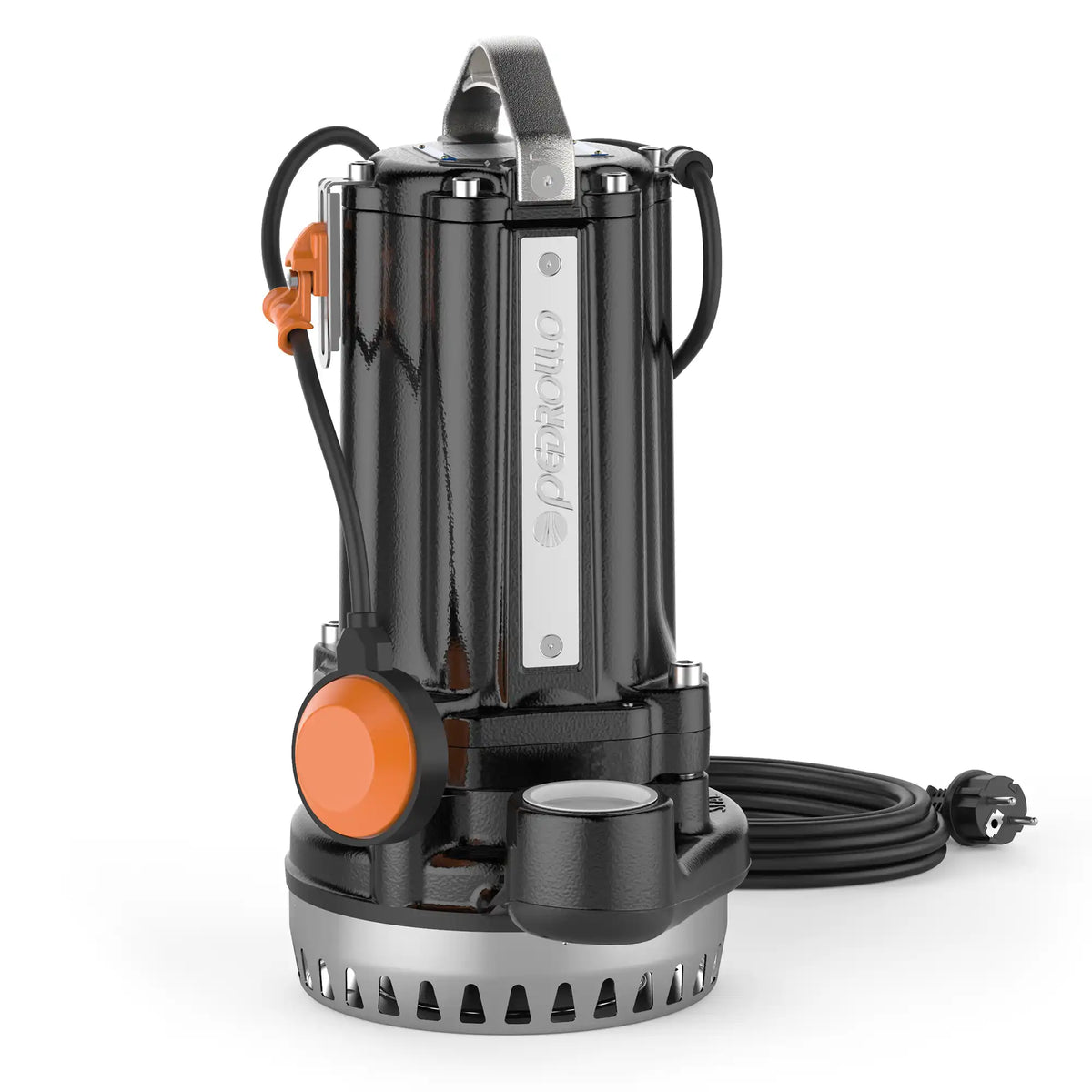

Electric pump DC Pedrollo
Key features
- CapacityUp to 550 l/min (33 m³/h)
- Motor2-pole
- Motor housingCast iron
- HeadUp to 38 m
- Liquid temperatureUp to +40 °C
- Solids passageUp to Ø 10 mm
What it is
Electric pump DC Pedrollo. Key specifications: capacity Up to 550 l/min (33 m³/h), motor 2-pole, motor housing Cast iron.
A submersible drainage pump is a pump that is immersed to empty flooded excavations, basements, sumps and tanks, handling clear, cloudy or waste water depending on the model.
What it is for
Used for water drainage and for pumping water out of excavations, tanks and sumps.
How to use it
Lower it to the lowest point hanging from its handle on a rope or chain, never by the cable, and stand it on a firm base or a raised support so it does not draw in mud. Connect the delivery hose laid out without kinks and set the float or level sensor for automatic start. Never run it dry, and clean the suction strainer after use.
Where it is used
- Water engineering works
- Civil protection
Technical data
- Capacity: Up to 550 l/min (33 m³/h)
- Motor: 2-pole
- Motor housing: Cast iron
- Head: Up to 38 m
- Liquid temperature: Up to +40 °C
- Solids passage: Up to Ø 10 mm
- Maximum operating depth: Up to 10 m (with a suitably long power cable)
- Minimum immersion for continuous duty: 220 mm DC 10-20-30 – 300 mm DC 42-43-44
- Protection: IP68
- Pump body: Cast iron
- Impeller: Technopolymer (DC 10-20-30) / AISI 304 investment-cast stainless steel
- Drive shaft: Stainless steel AISI 431
Who it is for
Designed for plumbers.
Related products
- Electric pump RX Pedrollo
- Electric pump D Pedrollo
- PrimoFlex Plus hose 5/8", 50m, for gardening and pressure washers Kärcher — from the category Water Hoses and Layflat Hoses
- Round inspection chamber with tap — from the category Inspection Chambers
- Generator RG10000HEO Genmac — from the category Portable and Wheeled Generating Sets
- Browse the whole category: Submersible Drainage Pumps
Before you order
In your request, please state the rated load or flow rate and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
