SDS-Max hammer drill bit DeWalt DT9434-QZ

What it is

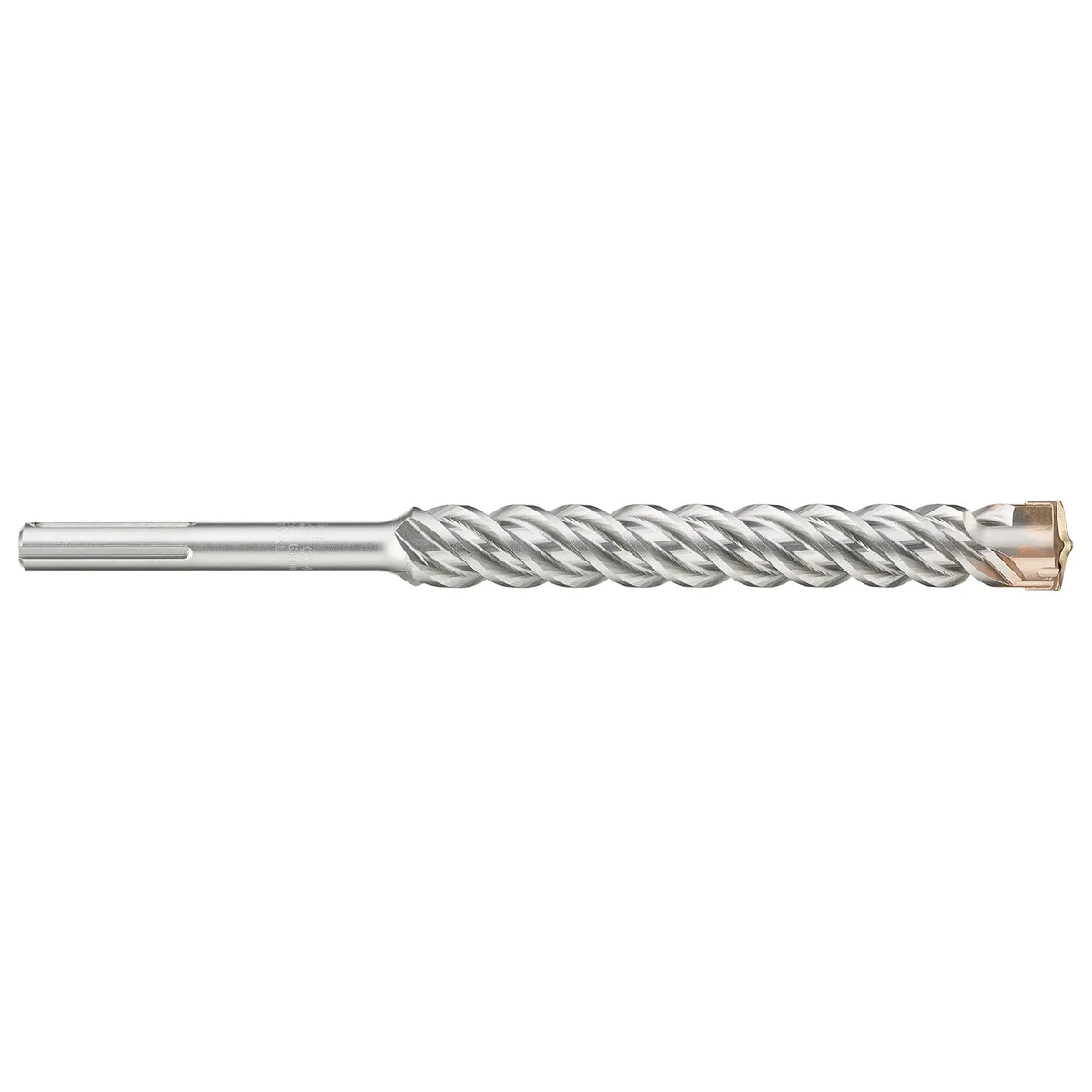

The DeWalt DT9434-QZ is an SDS-Max bit with a diameter of 32 mm and a working length of 250 mm. Despite the generous diameter, the short stroke and the weight of around 1.095 kg make it easy to handle for short, repeated holes. The carbide-tooth head and four-flute body ensure decisive penetration in masonry and efficient debris removal.

An SDS-Max bit is a carbide-tipped bit for rotary hammers with an SDS-Max chuck, for large-diameter, deep holes in concrete and masonry.

What it is for

Used for drilling reinforced concrete, in hammer or rotary hammer mode and for drilling solid and hollow masonry, clay brick and blocks.

How to use it

Clean and lightly grease the shank, insert it into the chuck until it locks and select hammer drilling. Drill with the hammer held in line with the hole, letting the machine's weight do the work without pushing, and withdraw the bit frequently to clear the dust. If you hit a reinforcing bar, stop and move the hole; do not cool a hot bit in water.

Where it is used

• Residential construction
• Building services
• Renovation

Technical data

• Diameter (mm): 32
• Head type: Carbide tooth
• Pgm: Sì
• Width (cm): 4,7
• Height (cm): 4,7
• Working length (mm): 250
• Weight (kg): 1,095
• Masonry drilling type: SDS
• Application material: Masonry
• Shank connection: SDS MAX
• Length (cm): 42,3
• Pack: Label

Who it is for

Designed for electricians, plumbers, bricklayers and construction workers.
