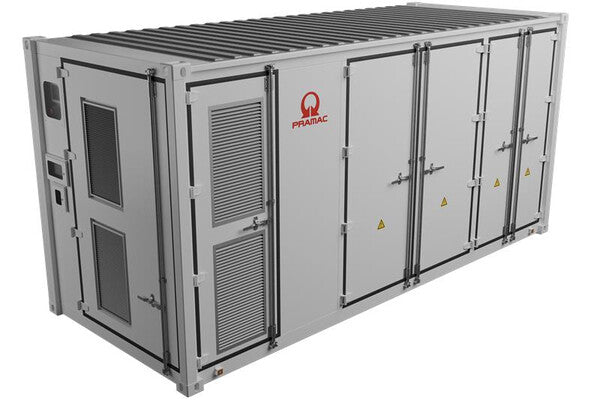

Containerised energy storage system Pramac BSC PWR (PRO) 1080/1064/20

What it is

Containerised energy storage system Pramac BSC PWR (PRO) 1080/1064/20. Key specifications: voltage 400 Vac, frequency (Hz) 50, maximum AC current (A) 1560.

The energy storage system is a set of batteries, generally lithium, with management electronics, that stores the energy produced by a photovoltaic system or drawn from the grid and releases it when needed, for self-consumption or emergency use.

What it is for

Used for emergency power generation when the mains supply fails, in the installation and maintenance of residential and industrial electrical systems and for installing building services and plant.

How to use it

It is installed by a qualified electrician, in a dry, ventilated environment with the temperature within the stated limits, connecting it to the inverter and to the system according to the manufacturer's diagram. During operation, check the state of charge and the system messages, without opening the enclosures. At the end of their life, the batteries are handed over to an authorised centre.

Where it is used

• Industrial construction
• Renewable energy (solar PV)
• Industrial plant engineering

Technical data

• Voltage: 400 Vac
• Frequency (Hz): 50
• Maximum AC current (A): 1560
• Battery cell: Li-Ion (LFP) Prismatic type
• Total capacity: 1064 kWh
• Rated apparent power, on grid (kVA): 1080
• Rated apparent power, backup (kVA): 900
• Pieces per pack: 12
• Module capacity: 8.06 kWh
• Module quantity: 132 n.
• Cycles at 100% DoD, 65% SoH: 7300 n.
• Certifications: 114197

Who it is for

Designed for electricians and solar PV installers.
