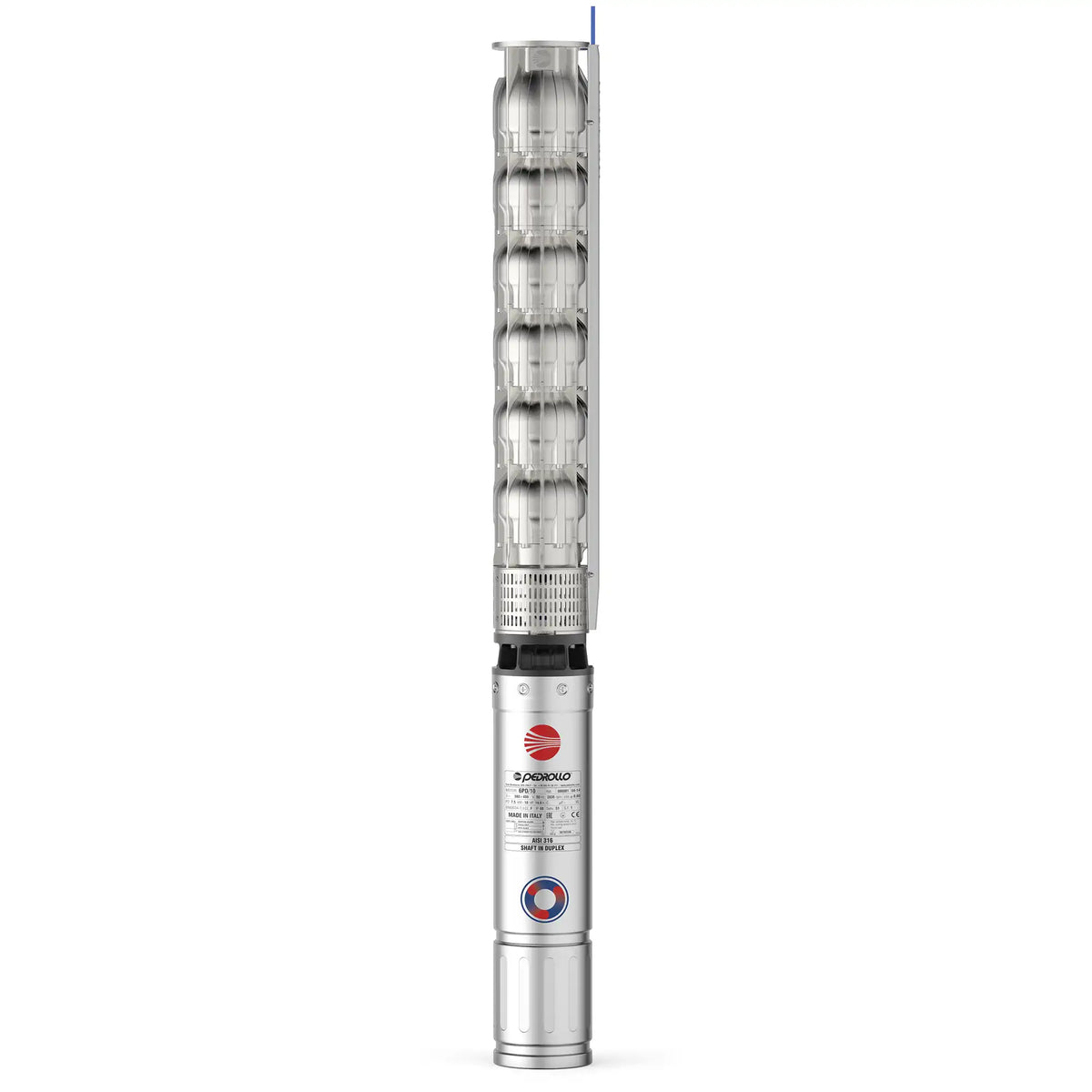

Electric pump 6HR Pedrollo
Also known as: submersible pump, borehole pump, deep well pump
Key features
- CapacityUp to 1500 l/min (90 m³/h)
- Motor2-pole
- SupportAISI 304 investment-cast stainless steel
- Maximum sand content100 g/m³
- Maximum operating depth200 m with 6PD motors – 150 m with 6PSR motors
- IP protection ratingIP68
What it is
Electric pump 6HR Pedrollo. Key specifications: capacity Up to 1500 l/min (90 m³/h), motor 2-pole, support AISI 304 investment-cast stainless steel.
A clean water pump is a surface or submersible electric pump that lifts or pressurises clear water from wells, cisterns and tanks.
What it is for
Used in irrigation systems, from the water supply point to the emitter and for pumping water out of excavations, tanks and sumps.
How to use it
Install surface pumps on a level base close to the draw-off point, with a foot valve on the suction pipe, and fill them with water before first start-up; lower submersible pumps suspended on a rope. Use them only with clean, sand-free water and never let them run dry. Connect them to a circuit protected by an RCD and, in winter, drain outdoor pumps to protect them from frost.
Where it is used
- Agriculture
- Building services
- Water engineering works
Technical data
- Capacity: Up to 1500 l/min (90 m³/h)
- Motor: 2-pole
- Support: AISI 304 investment-cast stainless steel
- Maximum sand content: 100 g/m³
- Maximum operating depth: 200 m with 6PD motors – 150 m with 6PSR motors
- IP protection rating: IP68
- Head: Up to 375 m
- Liquid temperature: Up to +40 °C
- Delivery casing: AISI 304 investment-cast stainless steel
- Impellers: AISI 304 investment-cast stainless steel
- Diffusers: AISI 304 investment-cast stainless steel
- Shaft: Stainless steel AISI 304
Who it is for
Designed for plumbers, agricultural workers and heating and plumbing engineers.
Related products
- Electric pump 6SR Pedrollo
- Electric pump 3SR Pedrollo
- Set of 1/2'' flexible hoses - 20 m Kärcher — from the category Water Hoses and Layflat Hoses
- Reducing sockets MF art. 246 — from the category Galvanised Pipe Fittings
- Storage container for palletised drums Sall — from the category Tanks, Cisterns and Drums for Liquid Storage
- Browse the whole category: Clean Water Pumps
Before you order
In your request, please state the rated load or flow rate and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 13
| Item code | 6HR |
|---|---|
| Capacity | Up to 1500 l/min (90 m³/h) |
| Motor | 2-pole |
| Support | AISI 304 investment-cast stainless steel |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth | 200 m with 6PD motors – 150 m with 6PSR motors |
| IP protection rating | IP68 |
| Head | Up to 375 m |
| Liquid temperature | Up to +40 °C |
| Delivery casing | AISI 304 investment-cast stainless steel |
| Impellers | AISI 304 investment-cast stainless steel |
| Diffusers | AISI 304 investment-cast stainless steel |
| Shaft | Stainless steel AISI 304 |
