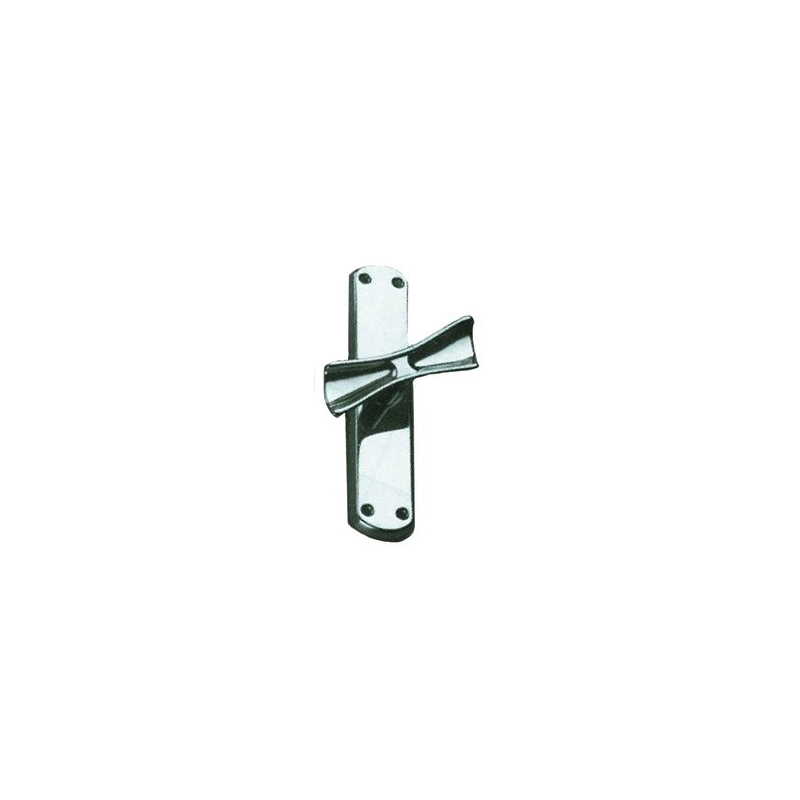

Butterfly-handle espagnolette bolt

What it is

Butterfly-handle espagnolette bolt. Key specifications: material ZIRAL, finish chrome-plated, type butterfly-type, with Gratz play.

An espagnolette is a closing mechanism for casement leaves, made up of a handle that moves two vertical rods which engage at the top and bottom of the frame.

What it is for

Used for assembly work.

How to use it

Fit it on the leaf with the rods cut to length, adjusting them so that they engage properly. It is operated by turning the handle; lubricate the moving parts from time to time.

Where it is used

• Residential construction
• Building maintenance

Technical data

• Material: ZIRAL
• Finish: chrome-plated
• Type: butterfly-type, with Gratz play

Who it is for

Designed for metal fabricators and joiners.
