SDS Max XLR bit 16x340x200mm DeWalt DT60809-QZ

What it is

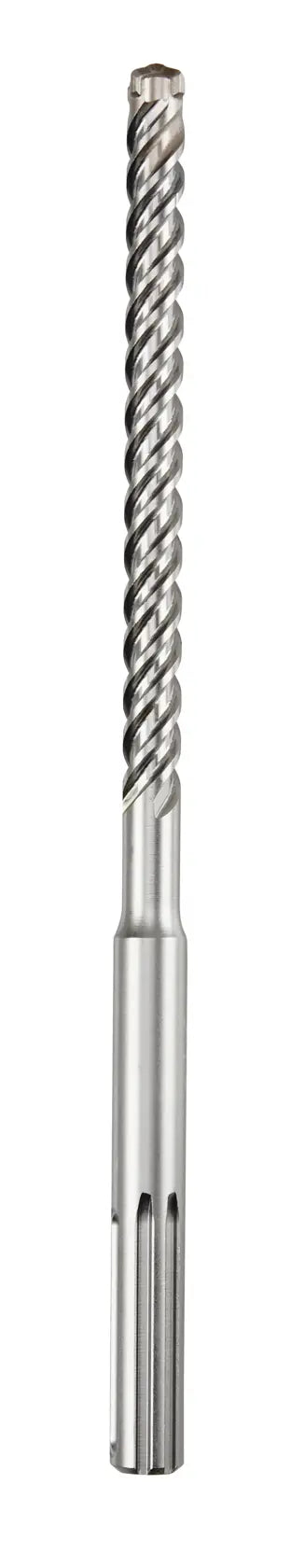

The DeWalt DT60809-QZ drill bit belongs to the SDS Max XLR range and has a diameter of 16 mm, a useful working length of 200 mm and an overall length of 340 mm. The tungsten carbide head and 4-cutter geometry are designed for effective drilling in masonry and concrete, while the SDS Max shank ensures compatibility with professional-grade breakers and rotary hammers. The low weight of 0.465 kg makes it easy to handle even during prolonged work.

An SDS-Max bit is a carbide-tipped bit for rotary hammers with an SDS-Max chuck, for large-diameter, deep holes in concrete and masonry.

What it is for

Used for drilling reinforced concrete, in hammer or rotary hammer mode and for drilling solid and hollow masonry, clay brick and blocks.

How to use it

Clean and lightly grease the shank, insert it into the chuck until it locks and select hammer drilling. Drill with the hammer held in line with the hole, letting the machine's weight do the work without pushing, and withdraw the bit frequently to clear the dust. If you hit a reinforcing bar, stop and move the hole; do not cool a hot bit in water.

Where it is used

• Demolition
• Residential construction
• Building services
• Renovation

Technical data

• Diameter (mm): 16
• Head type: Tungsten carbide
• Width (cm): 4
• Height (cm): 4
• Working length (mm): 200
• Weight (kg): 0,465
• Masonry drilling type: SDS
• Shank connection: SDS MAX
• Length (cm): 39
• Pack: Label

Who it is for

Designed for demolition operatives, electricians, plumbers and bricklayers.
