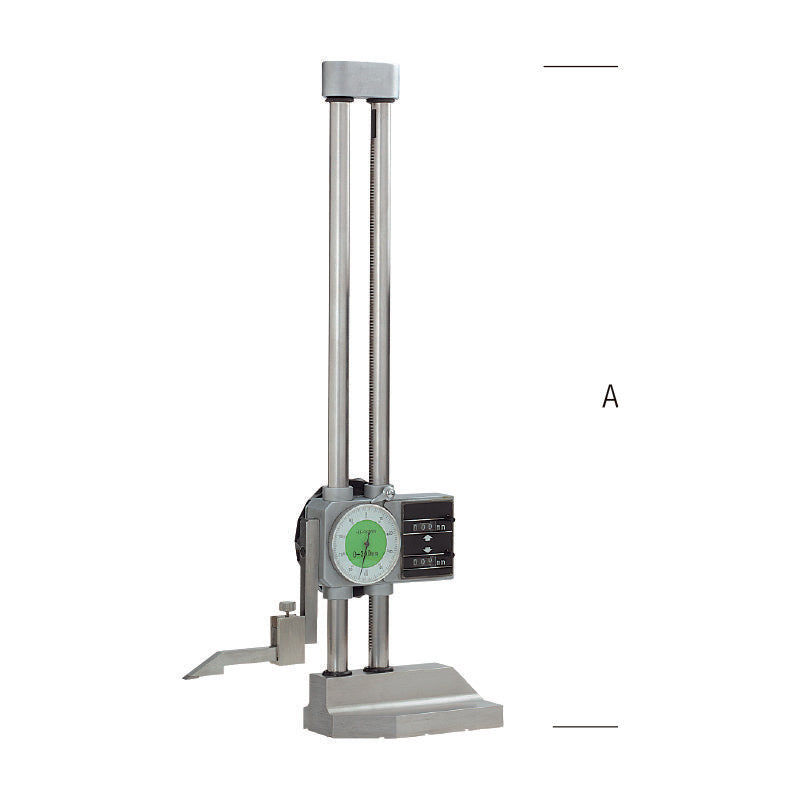

Scribing block with dial gauge Metrica

What it is

Scribing block with dial gauge Metrica. Key specifications: accessories / consumables Wooden case included.

A height gauge is a workshop instrument with a flat base and height-adjustable scriber, for marking out and measuring heights on workpieces resting on a surface plate.

What it is for

Used in quality control of parts and workmanship and for marking out lines, dimensions and reference points before work begins.

How to use it

Place the workpiece and height gauge on a clean surface plate. Set the scriber to the required height, reading the scale, vernier or display, and lock it. Slide the base across the plate keeping the scriber in contact with the workpiece to mark the line. After use, clean the gauge and protect the scriber tip.

Where it is used

• Mechanical workshops

Technical data

• Accessories / consumables: Wooden case included

Who it is for

Designed for mechanics.
