IrudekAnchor lanyard NEXION 150, 0,91 kg, IrudekCode 101002100023
Connect the harness to the anchor and absorb the jolt in the event of a fall from height.
All Irudek products
Anchor Base Core, Irudek
Key features
- TypeCore-drilled mounting base for anchor systems
- StandardEN 795
- Capacity (kg)280 (2 users in rescue); 140 (1 user in fall arrest)
- Load moment (kN/m)10,2
- Vertical load (kN)22,24
- Installation hole diameter (mm)101,6
What it is
Anchor BASE CORE (code 100205900050) is an Irudek anchor device for fall protection. It is intended for professional use for working at height safely, in accordance with the manufacturer's instructions.
A fall protection anchor is the fixed point, permanent or mobile, to which the worker's fall arrest or rope access system is connected.
What it is for
Used as an anchor point in fall protection systems, as personal protective equipment in hazardous work and for work at height, where access and restraint must be ensured for the whole job.
How to use it
Choose the type according to the substrate (concrete, rock, steel, beam, vehicle) and install it following the manufacturer's instructions, using the specified fixings. Check its condition before use and connect with a connector, preferably above the worker's head. Take into account the fall clearance below the work position; an anchor that has arrested a fall must be taken out of service.
Where it is used
- Industrial construction
- Residential construction
- Workplace safety and PPE
Technical data
- Type: Core-drilled mounting base for anchor systems
- Standard: EN 795
- Capacity (kg): 280 (2 users in rescue); 140 (1 user in fall arrest)
- Load moment (kN/m): 10,2
- Vertical load (kN): 22,24
- Installation hole diameter (mm): 101,6
- Weight (kg): 2,95
- Material: Hot-dip galvanised welded steel; high-density polyethylene sleeve
- Service life: Unlimited
Who it is for
Designed for building maintenance operatives, industrial maintenance technicians and health and safety officers.
Related products
- Anchor Base Flush, Irudek
- Anchor Barrel Base, Irudek
- Fall protection kit, Ernio ABE, Irudek — from the category Fall Arrest Harnesses
- Connector STEELSAFE 989 Irudek — from the category Safety Karabiners
- Fall-arrest lanyard with energy absorber ABE 362 Irudek — from the category Lanyards and Energy Absorbers
- Browse the whole category: Anchors
Before you order
In your request, please state the diameter, the rated load or flow rate and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 11
| Item code | 100205900050 |
|---|---|
| Type | Core-drilled mounting base for anchor systems |
| Standard | EN 795 |
| Capacity (kg) | 280 (2 users in rescue); 140 (1 user in fall arrest) |
| Load moment (kN/m) | 10,2 |
| Vertical load (kN) | 22,24 |
| Installation hole diameter (mm) | 101,6 |
| Weight (kg) | 2,95 |
| Material | Hot-dip galvanised welded steel; high-density polyethylene sleeve |
| Use | Installation in new or existing concrete structures; for Irudek DAVIT and ANALOG systems |
| Service life | Unlimited |
The perfect setup for this job
Everything you need in one place, from functionality to safety.
For the job
IrudekConnector SILVERLIGHT 1135 IrudekCode 102300900006
Connect harnesses, lanyards and anchors to protect against falls when working at height.
IrudekConnector SILVERLIGHT 988 IrudekCode 102300900001
Connect harness, lanyards and anchors in systems that protect against falls from height.
For safety

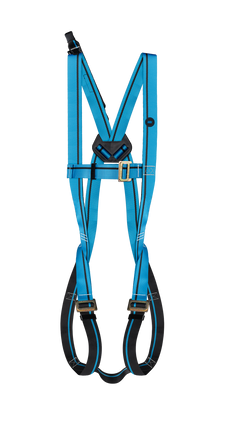

IrudekHarness Light 1, IrudekCode 100404500053
