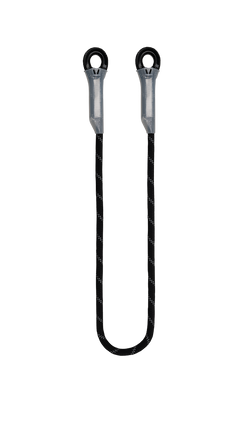

IrudekAnchor lanyard NEXION 100 IrudekCode 101002100004
Connect the harness to the anchor and absorb the jolt in the event of a fall from height.
All Irudek products
Anchor Hitch Base, Irudek
Key features
- RegulationsEN 795
- Usage capacity (rescue)2 users / 280 kg
- Usage capacity (fall arrest)1 user / 140 kg
- Weight (kg)29,5
- Service lifeUnlimited
- Frame materialGalvanised steel / 6061-T6 aluminium
What it is

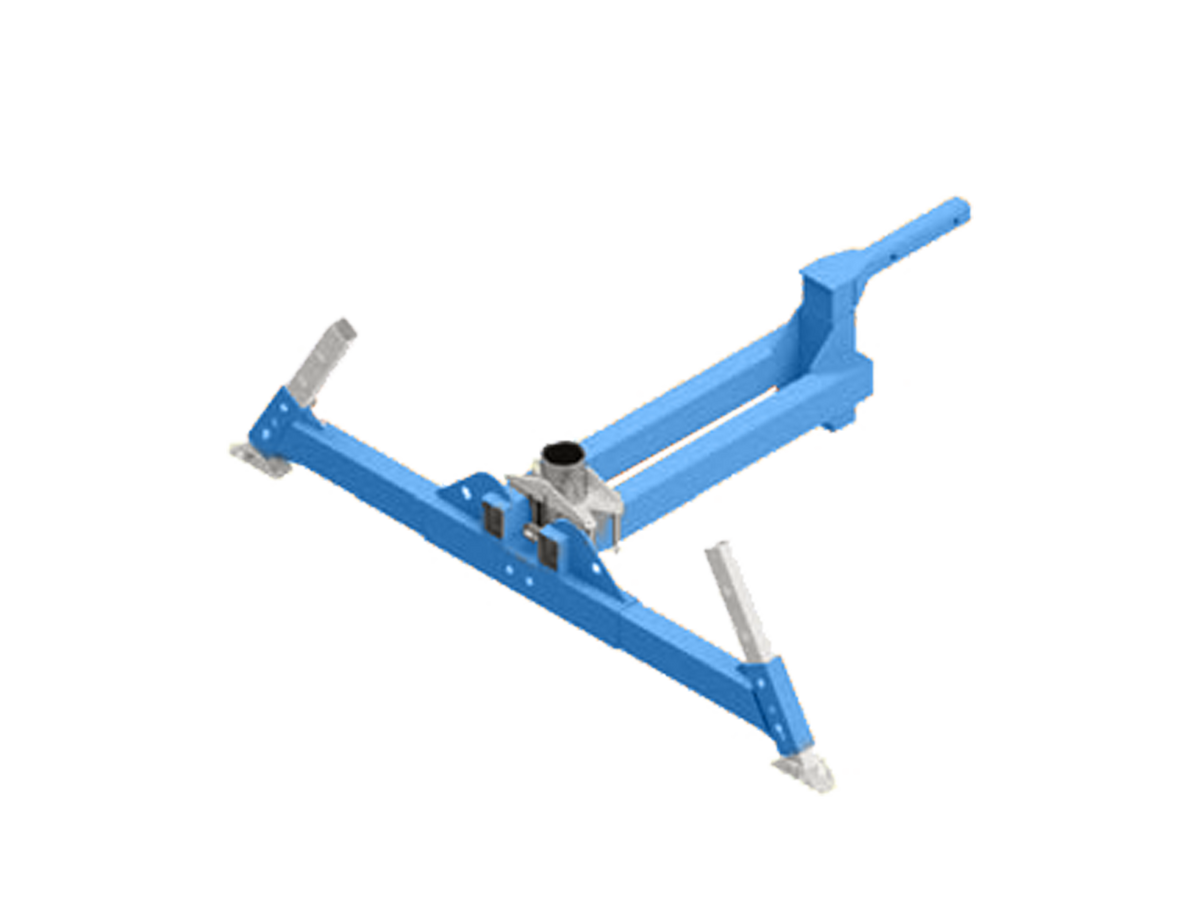

Anchor HITCH BASE (code 100205900031) is an Irudek anchor device for fall protection. It is intended for professional use for working at height safely, in accordance with the manufacturer's instructions.
A fall protection anchor is the fixed point, permanent or mobile, to which the worker's fall arrest or rope access system is connected.
What it is for
Used as an anchor point in fall protection systems, as personal protective equipment in hazardous work and for work at height, where access and restraint must be ensured for the whole job.
How to use it
Choose the type according to the substrate (concrete, rock, steel, beam, vehicle) and install it following the manufacturer's instructions, using the specified fixings. Check its condition before use and connect with a connector, preferably above the worker's head. Take into account the fall clearance below the work position; an anchor that has arrested a fall must be taken out of service.
Where it is used
- Industrial construction
- Residential construction
- Workplace safety and PPE
Technical data
- Regulations: EN 795
- Usage capacity (rescue): 2 users / 280 kg
- Usage capacity (fall arrest): 1 user / 140 kg
- Weight (kg): 29,5
- Service life: Unlimited
- Frame material: Galvanised steel / 6061-T6 aluminium
- Finish: Powder coating
Who it is for
Designed for building maintenance operatives, industrial maintenance technicians and health and safety officers.
Related products
- Anchor ORBYT, Irudek
- Anchor GAKO 12, Irudek
- Harness Light 5, Irudek — from the category Fall Arrest Harnesses
- Connector SILVERLIGHT 1135 Irudek — from the category Safety Karabiners
- Fall-arrest lanyard with energy absorber ASTUN Y 140HSA (373) Irudek — from the category Lanyards and Energy Absorbers
- Browse the whole category: Anchors
Before you order
Tell us the quantities you need and the intended use: if there is a more suitable version, or an equivalent available sooner, we will let you know.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 7
| Regulations | EN 795 |
|---|---|
| Usage capacity (rescue) | 2 users / 280 kg |
| Usage capacity (fall arrest) | 1 user / 140 kg |
| Weight (kg) | 29,5 |
| Service life | Unlimited |
| Frame material | Galvanised steel / 6061-T6 aluminium |
| Finish | Powder coating |
