Anchor Wall Mount Base, Irudek
Key features
- StandardEN 795 / CEN/TS 16415
- CapacityRescue: max. 2 users / 280 kg; fall arrest: 1 user / 140 kg
- Weight (kg)4,7
- MaterialHot-dip galvanised steel
- Tensile strength for fixing (kN)48,9
- Usefixed base for bolting or welding to a wall (4 fixing points)
What it is

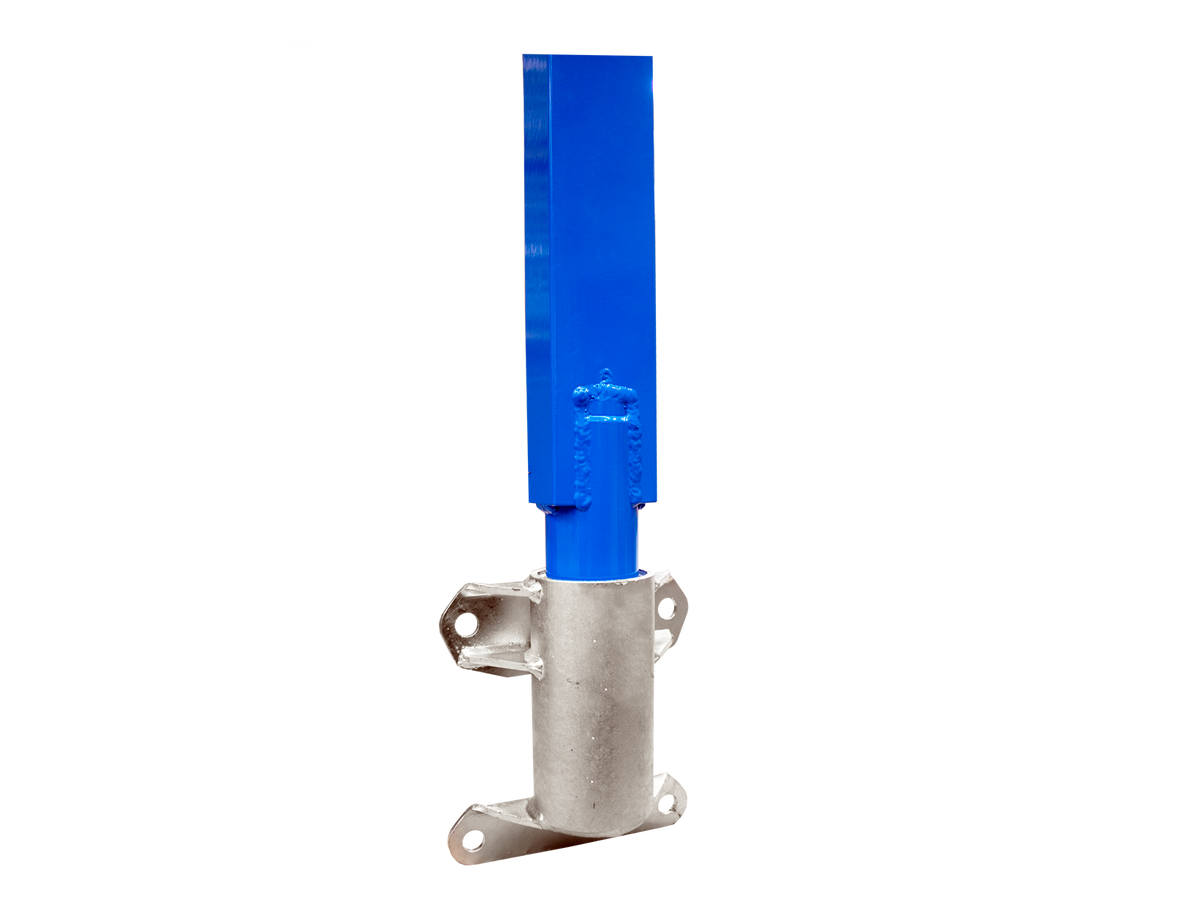

Anchor WALL MOUNT BASE (code 100205900026) is an Irudek anchor device for fall protection. It is intended for professional use for working at height safely, in accordance with the manufacturer's instructions.
A fall protection anchor is the fixed point, permanent or mobile, to which the worker's fall arrest or rope access system is connected.
What it is for
Used for safe access to excavations, as an anchor point in fall protection systems and for fall protection, as part of a fall arrest or work restraint system.
How to use it
Choose the type according to the substrate (concrete, rock, steel, beam, vehicle) and install it following the manufacturer's instructions, using the specified fixings. Check its condition before use and connect with a connector, preferably above the worker's head. Take into account the fall clearance below the work position; an anchor that has arrested a fall must be taken out of service.
Where it is used
- Industrial plant engineering
- Water engineering works
- Workplace safety and PPE
Technical data
- Standard: EN 795 / CEN/TS 16415
- Capacity: Rescue: max. 2 users / 280 kg; fall arrest: 1 user / 140 kg
- Weight (kg): 4,7
- Material: Hot-dip galvanised steel
- Tensile strength for fixing (kN): 48,9
- Use: fixed base for bolting or welding to a wall (4 fixing points)
Who it is for
Designed for plumbers, industrial maintenance technicians, construction workers and health and safety officers.
Related products
- Webbing or cable anchor loops CTA01 / CTA02 / CTA14 Irudek
- Anchor Side Entry, Irudek
- Harness Expert 1 Pro, Irudek — from the category Fall Arrest Harnesses
- Connector STEELSAFE 981 Irudek — from the category Safety Karabiners
- Fall-arrest lanyard with energy absorber ABE 362 Irudek — from the category Lanyards and Energy Absorbers
- Browse the whole category: Anchors
Before you order
In your request, please state the rated load or flow rate and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 6
| Standard | EN 795 / CEN/TS 16415 |
|---|---|
| Capacity | Rescue: max. 2 users / 280 kg; fall arrest: 1 user / 140 kg |
| Weight (kg) | 4,7 |
| Material | Hot-dip galvanised steel |
| Tensile strength for fixing (kN) | 48,9 |
| Use | fixed base for bolting or welding to a wall (4 fixing points) |
