EfcoCoiled hose Ø1'', length 4m, EfcoCode 00808
Carry water for irrigating, washing and supplying machines in the garden and on site.
All Pedrollo products

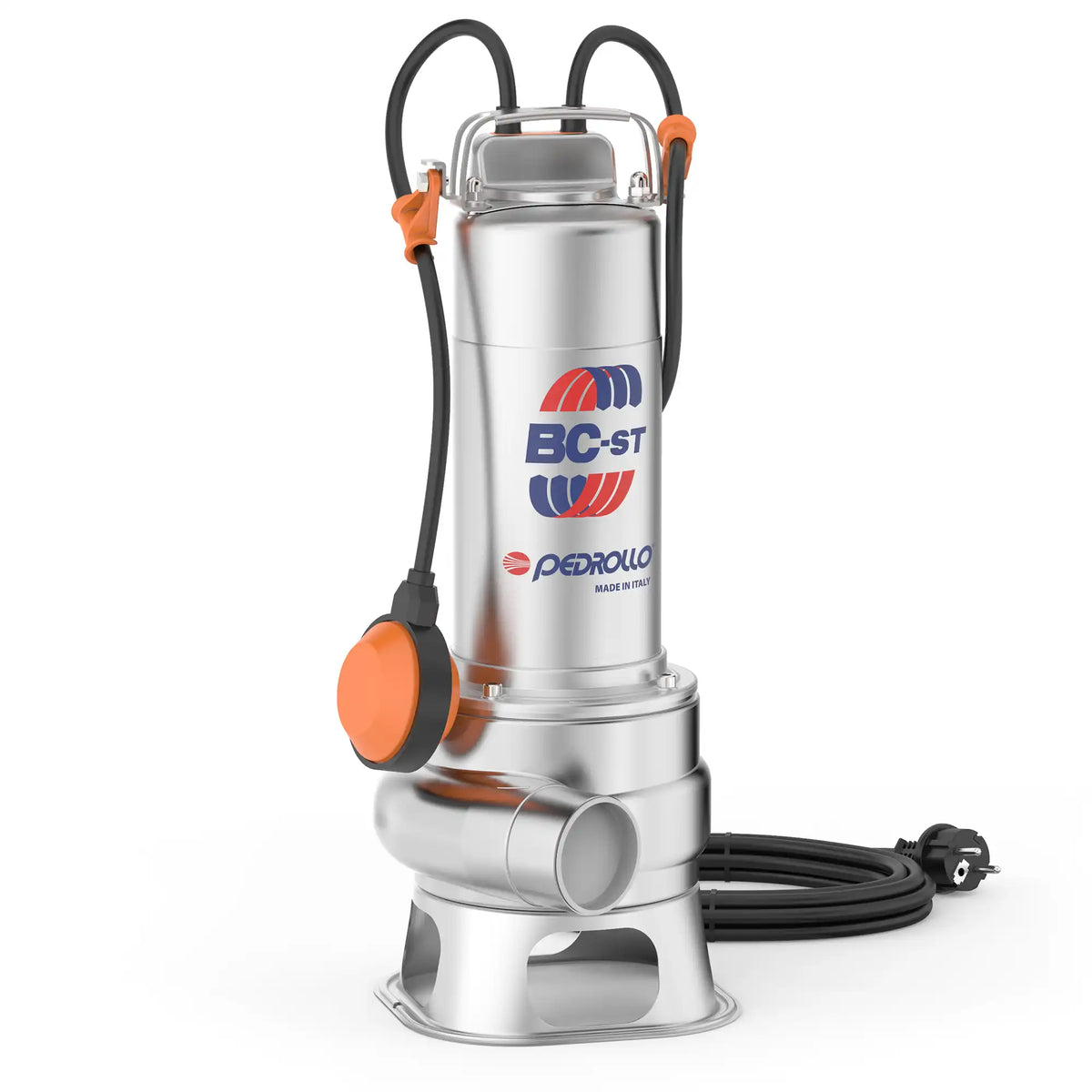

Electric pump BC-ST Pedrollo
Key features
- ProtectionIP68
- CapacityUp to 850 l/min (51 m³/h)
- HeadUp to 17 m
- Liquid temperatureUp to +40 °C
- Solids passageUp to Ø 50 mm
- Maximum operating depthUp to 5 m (with a suitably long power cable)
What it is
Electric pump BC-ST Pedrollo. Key specifications: protection IP68, capacity Up to 850 l/min (51 m³/h), head Up to 17 m.
A dirty water pump is an electric pump or engine-driven pump that draws water containing mud, sand or solids from excavations, sumps, tanks and flooded rooms.
What it is for
Used for water drainage and for pumping water out of excavations, tanks and sumps.
How to use it
Lower the submersible pump to the lowest point, suspended by a rope attached to the handle (never by the cable), and rest it on firm ground; set the engine-driven pump on a level surface, prime it by filling the pump casing with water and immerse the suction hose with its strainer. Connect the delivery hose without kinks, start the pump and check that it does not run dry. After use, run it in clean water to flush it out.
Where it is used
- Water engineering works
- Civil protection
Technical data
- Protection: IP68
- Capacity: Up to 850 l/min (51 m³/h)
- Head: Up to 17 m
- Liquid temperature: Up to +40 °C
- Solids passage: Up to Ø 50 mm
- Maximum operating depth: Up to 5 m (with a suitably long power cable)
- Minimum immersion for continuous duty: 290 mm for BC 10/50-ST – 330 mm for BC 15/50-ST – 360 mm for BC 20/50-ST
- Motor: 2-pole
- Pump body: Stainless steel AISI 304
- Impeller: AISI 304 cast stainless steel
- Motor casing: Stainless steel AISI 304
- Drive shaft: Stainless steel AISI 431
Who it is for
Designed for plumbers.
Related products
- Electric pump BC4 Pedrollo
- Electric pump BC-MF Pedrollo
- High-density PE pipe PN16 — from the category Water Hoses and Layflat Hoses
- Generator G7900HO Genmac — from the category Portable and Wheeled Generating Sets
- Elastic cords — from the category Synthetic Ropes and Lines
- Browse the whole category: Electric and Engine-Driven Pumps for Dirty Water and Wastewater
Before you order
In your request, please state the rated load or flow rate and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 12
| Protection | IP68 |
|---|---|
| Capacity | Up to 850 l/min (51 m³/h) |
| Head | Up to 17 m |
| Liquid temperature | Up to +40 °C |
| Solids passage | Up to Ø 50 mm |
| Maximum operating depth | Up to 5 m (with a suitably long power cable) |
| Minimum immersion for continuous duty | 290 mm for BC 10/50-ST – 330 mm for BC 15/50-ST – 360 mm for BC 20/50-ST |
| Motor | 2-pole |
| Pump body | Stainless steel AISI 304 |
| Impeller | AISI 304 cast stainless steel |
| Motor casing | Stainless steel AISI 304 |
| Drive shaft | Stainless steel AISI 431 |
