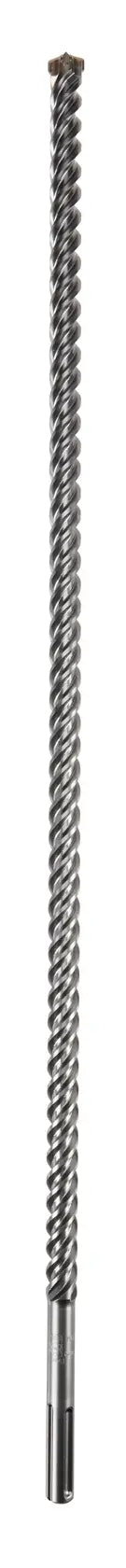

SDS Max XLR bit 26x340x200mm DeWalt DT60827-QZ

What it is

The DeWalt DT60827-QZ drill bit from the SDS Max XLR range has a diameter of 26 mm, with a working length of 200 mm and an overall length of 340 mm. The tungsten carbide head and 4 cutters ensure effective drilling in concrete and masonry, while the reinforced core increases its resistance in heavy-duty applications. The SDS Max shank makes it compatible with professional rotary hammers; the weight is 0.755 kg.

An SDS-Max bit is a carbide-tipped bit for rotary hammers with an SDS-Max chuck, for large-diameter, deep holes in concrete and masonry.

What it is for

Used for drilling reinforced concrete, in hammer or rotary hammer mode and for drilling solid and hollow masonry, clay brick and blocks.

How to use it

Clean and lightly grease the shank, insert it into the chuck until it locks and select hammer drilling. Drill with the hammer held in line with the hole, letting the machine's weight do the work without pushing, and withdraw the bit frequently to clear the dust. If you hit a reinforcing bar, stop and move the hole; do not cool a hot bit in water.

Where it is used

• Demolition
• Residential construction
• Building services
• Renovation

Technical data

• Diameter (mm): 26
• Head type: Tungsten carbide
• Reinforced core: Sì
• Width (cm): 4,6
• Height (cm): 4,6
• Working length (mm): 200
• Weight (kg): 0,755
• Masonry drilling type: SDS
• Shank connection: SDS MAX
• Length (cm): 38,5
• Pack: Label

Who it is for

Designed for demolition operatives, electricians, plumbers and bricklayers.
