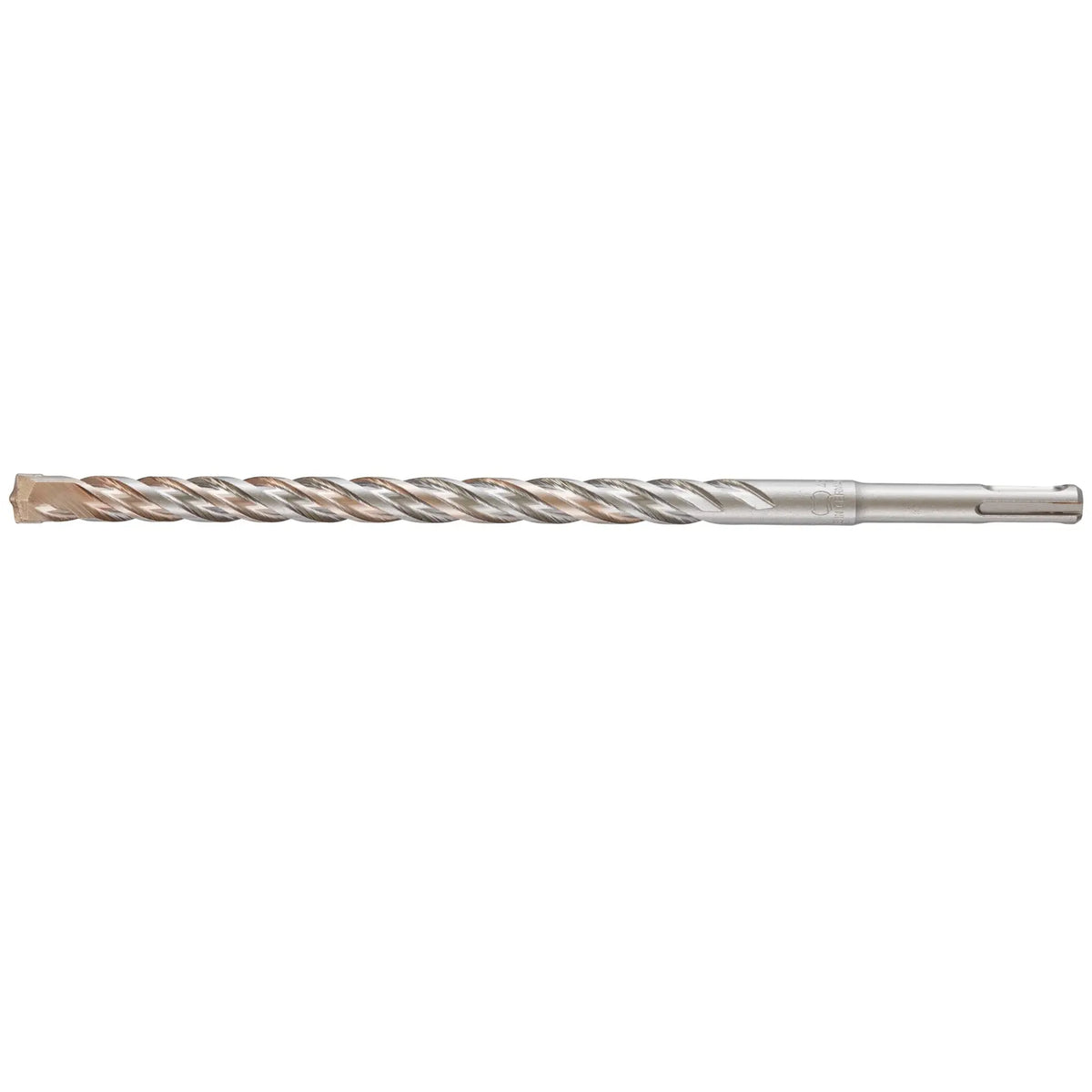

SDS-plus Extreme bit 12x260x200mm DeWalt DT9554-QZ

What it is

The DeWalt DT9554-QZ is a 12 mm diameter SDS-Plus Extreme bit designed for hammer drilling in concrete. The twin flutes, two-cutting-edge head and reinforced core promote fast dust removal and stable drilling, while the SDS-Plus shank makes it compatible with rotary hammers fitted with an SDS-Plus chuck. With a working length of 210 mm, it can reach greater depths in the sturdier diameters.

A masonry bit is a carbide-tipped bit for drilling concrete, brick and stone with a hammer drill or rotary hammer.

What it is for

Used for drilling reinforced concrete, in hammer or rotary hammer mode and for drilling solid and hollow masonry, clay brick and blocks.

How to use it

Choose the machine's shank type (straight, SDS-Plus or SDS-Max) and the diameter required by the wall plug. Start the hole at low speed, then engage hammer action, holding the bit square to the surface and without forcing, withdrawing it frequently to clear the dust. Clean the dust out of the hole before inserting the plug.

Where it is used

• Residential construction
• Building services
• Renovation

Technical data

• Diameter (mm): 12
• Head type: 2 cutting edges
• Reinforced core: Sì
• Width (cm): 5
• Height (cm): 1,5
• Working length (mm): 210
• Weight (kg): 0,145
• Masonry drilling type: SDS
• Application material: Concrete
• Shank connection: SDS PLUS
• Length (cm): 35
• Pack: Label

Who it is for

Designed for electricians, plumbers, bricklayers and heating and plumbing engineers.

Related products

• SDS-plus Extreme bit 12x300x250mm DeWalt DT9555-QZ
• SDS-plus Extreme bit 12x200x150mm DeWalt DT9553-QZ
• Cordless combi drill 18V XR brushless McLaren DeWalt — from the category Hammer Drills, Drill Drivers and Rotary Hammers
• Drop-in Anchor DM M20 x 80, DeWalt DFM2110250 — from the category Heavy-Duty Anchors
• Compact cordless rotary hammer SDS-Plus 16 mm 18V XR brushless - 2 x 5Ah DeWalt — from the category Rotary Hammers
• Browse the whole category: Drill Bits for Granite, Masonry and Concrete

Before you order

In your request, please state the length, the diameter, the connection type and the quantities required, so we can give you the right quotation first time.

For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
