4-flute SDS-plus bit DeWalt DT9696-QZ

What it is

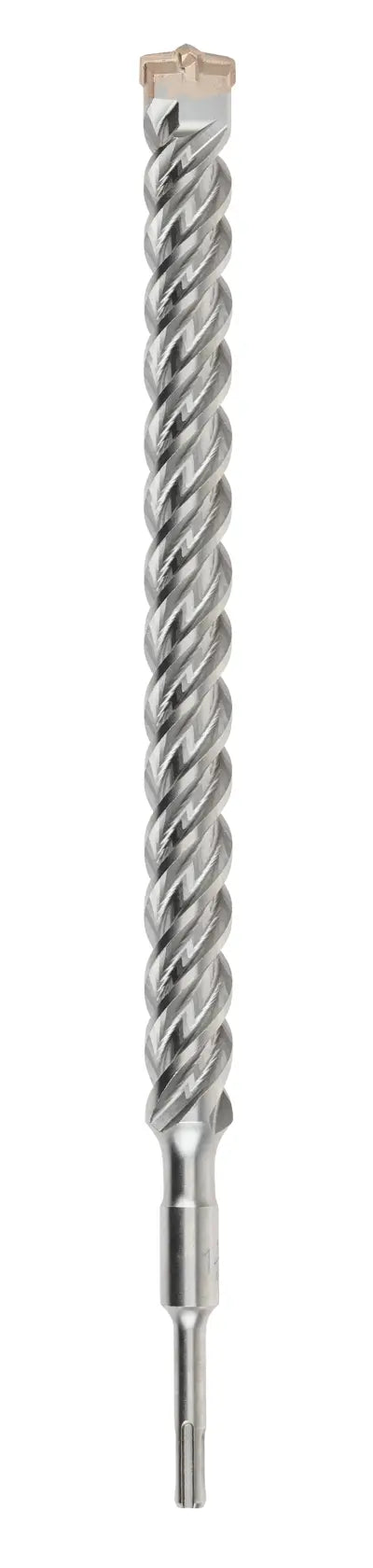

The DeWalt DT9696-QZ SDS-Plus drill bit has a 30 mm diameter, an overall length of 450 mm and 400 mm of working length, with a carbide-insert head and 4-cutter geometry. The combination ensures fast, steady hammer drilling in concrete, with good resistance on contact with reinforcing bars; the SDS PLUS shank ensures a stable grip in professional hammers and rotary hammers.

A masonry bit is a carbide-tipped bit for drilling concrete, brick and stone with a hammer drill or rotary hammer.

What it is for

Used for drilling reinforced concrete, in hammer or rotary hammer mode and for drilling solid and hollow masonry, clay brick and blocks.

How to use it

Choose the machine's shank type (straight, SDS-Plus or SDS-Max) and the diameter required by the wall plug. Start the hole at low speed, then engage hammer action, holding the bit square to the surface and without forcing, withdrawing it frequently to clear the dust. Clean the dust out of the hole before inserting the plug.

Where it is used

• Residential construction
• Building services
• Renovation

Technical data

• Diameter (mm): 30
• Head type: Carbide grit
• Total length (mm): 450
• Width (cm): 4,5
• Height (cm): 2,5
• Working length (mm): 400
• Weight (kg): 1
• Masonry drilling type: SDS
• Application material: Concrete
• Shank connection: SDS PLUS
• Length (cm): 53
• Pack: Label

Who it is for

Designed for electricians, plumbers, bricklayers and heating and plumbing engineers.
