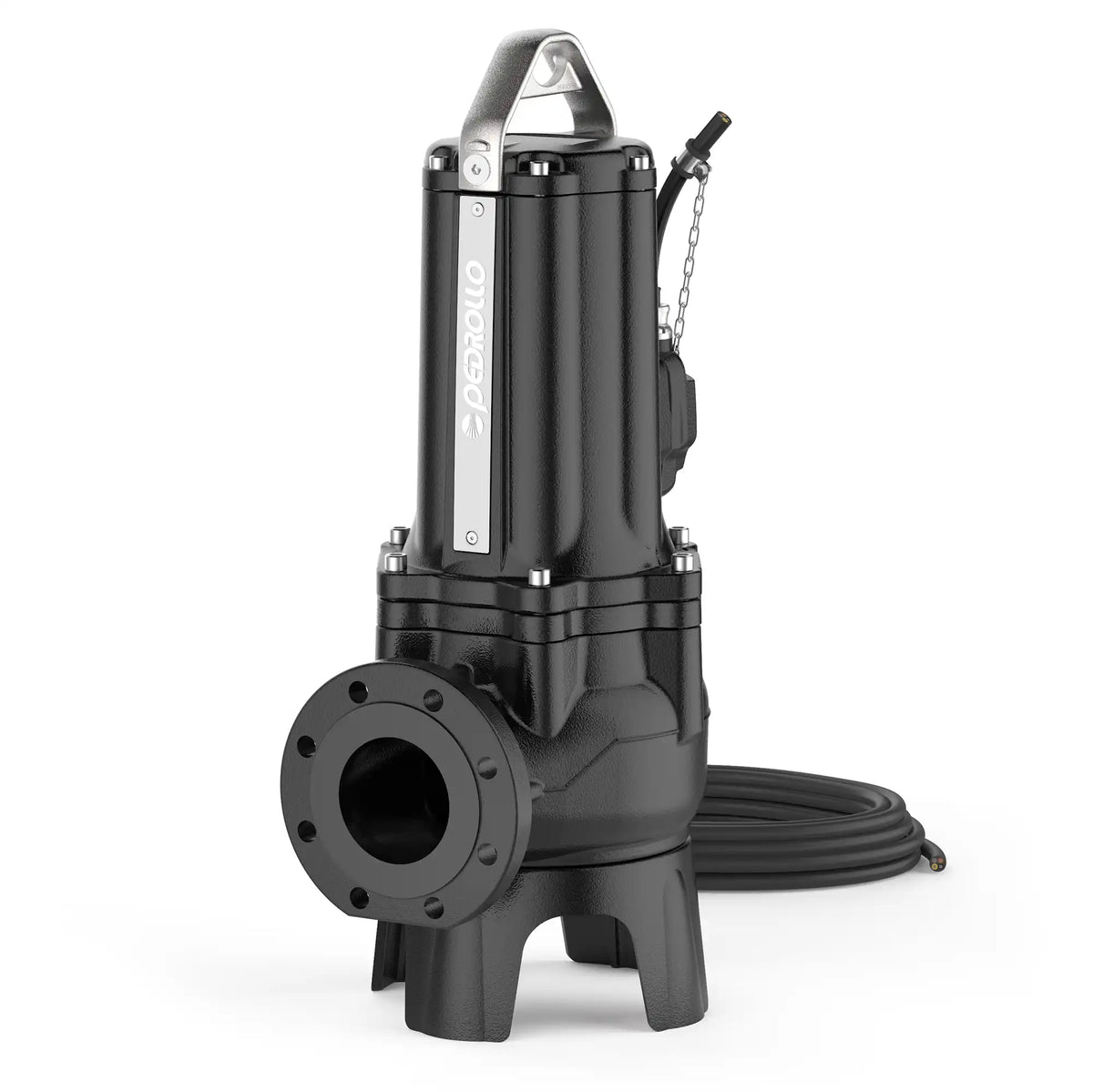

Submersible pump VXC4 medium flow rates Pedrollo
Also known as: submersible pump
Key features
- CapacityUp to 2200 l/min (132 m³/h)
- Head (m)up to 12.2
- Liquid temperatureUp to +40 °C
- Solids passageUp to Ø 100 mm
- Maximum operating depthUp to 10 m (with a suitably long power cable)
- Minimum immersion for continuous duty (mm)550
What it is
VXC4 Medium flow rates (code VXC4) is a Pedrollo electric pump — submersible pumps for waste water, 4-pole, with flow rate up to 2200 l/min (132 m³/h), head up to 12.2 m, liquid temperature up to +40 °C. Professional product, reliable for intensive use.
A dirty water pump is an electric pump or engine-driven pump that draws water containing mud, sand or solids from excavations, sumps, tanks and flooded rooms.
What it is for
Used for water drainage and for pumping water out of excavations, tanks and sumps.
How to use it
Lower the submersible pump to the lowest point, suspended by a rope attached to the handle (never by the cable), and rest it on firm ground; set the engine-driven pump on a level surface, prime it by filling the pump casing with water and immerse the suction hose with its strainer. Connect the delivery hose without kinks, start the pump and check that it does not run dry. After use, run it in clean water to flush it out.
Where it is used
- Water engineering works
- Civil protection
Technical data
- Capacity: Up to 2200 l/min (132 m³/h)
- Head (m): up to 12.2
- Liquid temperature: Up to +40 °C
- Solids passage: Up to Ø 100 mm
- Maximum operating depth: Up to 10 m (with a suitably long power cable)
- Minimum immersion for continuous duty (mm): 550
- Motor: 4-pole
- IP protection rating: IP68
- Pump body: Cast iron
- Impeller: Cast iron
- Motor mount: Cast iron
- Shaft: Stainless steel AISI 431
Who it is for
Designed for plumbers.
Related products
- Submersible pump ZXm 1 Pedrollo
- Submersible pump VXC4 high flow rates Pedrollo
- Flexible hose PrimoFlex 3/4" - 50 m Kärcher — from the category Water Hoses and Layflat Hoses
- Single-phase petrol power generator, 3kW, with wheels, DeWalt DXGNP30E — from the category Portable and Wheeled Generating Sets
- Starter ropes — from the category Synthetic Ropes and Lines
- Browse the whole category: Electric and Engine-Driven Pumps for Dirty Water and Wastewater
Before you order
In your request, please state the rated load or flow rate and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 13
| Item code | VXC4 |
|---|---|
| Capacity | Up to 2200 l/min (132 m³/h) |
| Head (m) | up to 12.2 |
| Liquid temperature | Up to +40 °C |
| Solids passage | Up to Ø 100 mm |
| Maximum operating depth | Up to 10 m (with a suitably long power cable) |
| Minimum immersion for continuous duty (mm) | 550 |
| Motor | 4-pole |
| IP protection rating | IP68 |
| Pump body | Cast iron |
| Impeller | Cast iron |
| Motor mount | Cast iron |
| Shaft | Stainless steel AISI 431 |
