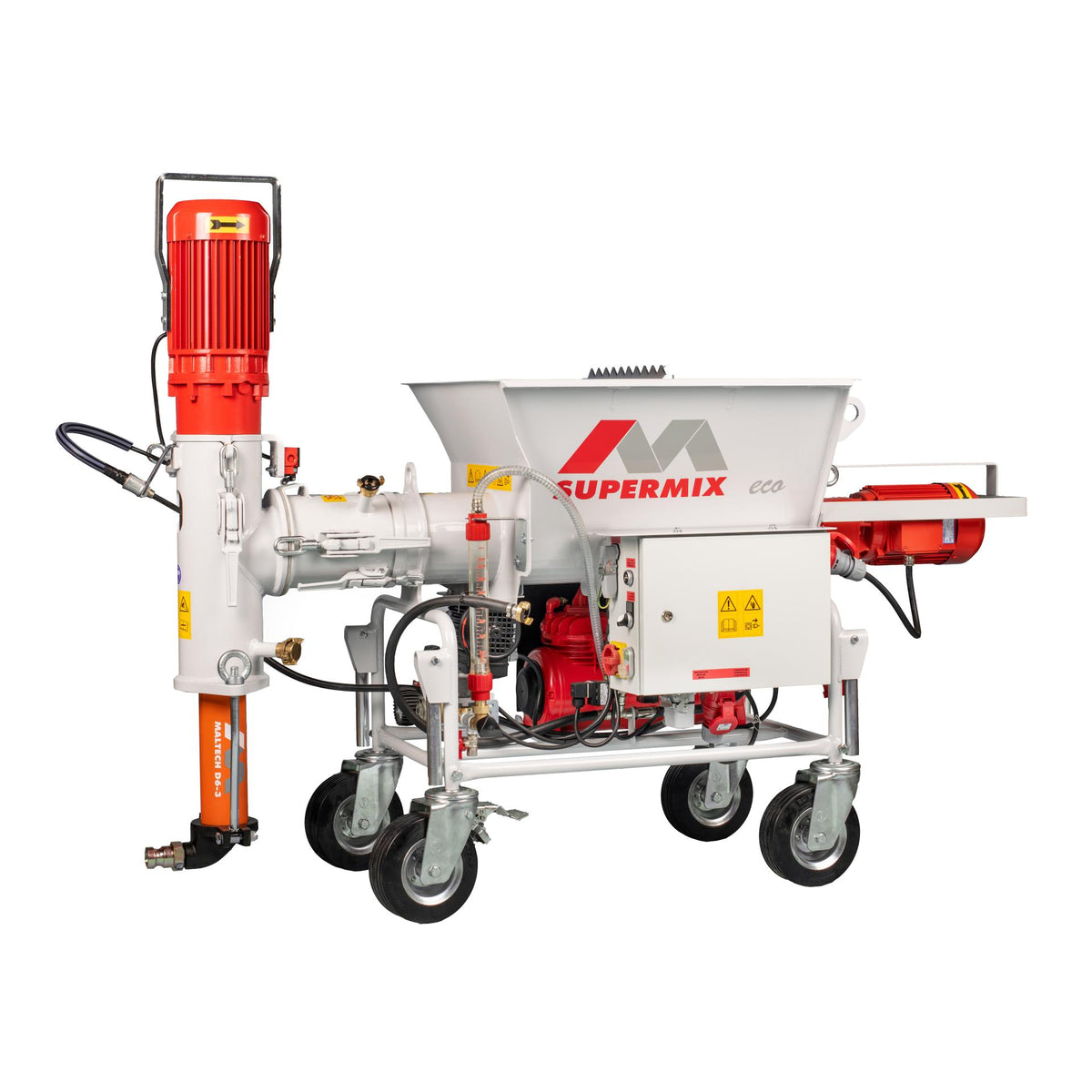

Plastering machine, Supermix Eco, Maltech

What it is

Plastering machine, Supermix Eco, Maltech. Key specifications: capacity approx. 5-30 l/min, standard (l/min) ca. 25, max range distance (m) ca. 30.

A plastering machine is a machine that mixes and pumps mortars and plasters to the spray gun; this category also includes mortar pumps and spare parts such as stators and rotors.

What it is for

Used for plastering walls and ceilings, by hand or by machine and for mixing mortars and adhesives.

How to use it

Connect the machine to water, power or compressed air, set the water flow according to the product and load the pre-mixed material into the hopper. Spray the mortar onto the wall in even bands, keeping the gun at a constant distance, then screed and finish. At the end of the job, immediately wash out the hopper, hoses and pump, and replace the stator and rotor when the pressure drops.

Where it is used

• Residential construction
• Renovation

Technical data

• Capacity: approx. 5-30 l/min
• Standard (l/min): ca. 25
• Max range distance (m): ca. 30
• Pump motor: 5,5 kW 400 V
• Mixer motor: 3,0 kW 400 V
• Compressor flow rate (l/min): 220
• Min water pressure (bar): 3
• Operating voltage: 400 V 50 Hz
• Rated current (A): 22
• Width (mm): 600
• Length (mm): 1870
• Height (mm): 1310
• Tank height (mm): 990
• Body material capacity (L): ca. 85

Who it is for

Designed for bricklayers and plasterers.

Standards and safety

Not explicitly indicated in the pages consulted.
